33CC Weed Wacker Gas Powered, 2-Stroke Single-Cylinder Grass Trimmer with Shoulder Strap, Weed Trimmer Tool for Garden, Lawn

33cc Weed Wacker

This product is mainly used for home lawn mowing, orchard mowing, tea garden mowing, cutting rice and wheat, cutting corn stalks, reed harvesting, pond side weed removal, bushes cutting, etc., and mostly used in agriculture, forestry, landscaping, and urban greening.

Details

Large Fuel Tank:
The 33.8 oz large capacity fuel tank ensure long-term use without frequent refueling.

Grass Baffle:
It can effectively prevent the broken grass from splashing around when mowing the lawn, thus making it easier to clean up the lawn after mowing and ensuring your safety.

Funnel:
The red funnel makes it easier to add fuel and less likely to leak.

Starting Method

1. Fill the fuel tank with well-proportioned fuel. (Mixing ratio: 1:20-25 for FB/FC grade engine oil, 1:40-50 for FD grade engine oil)
2. Press the fuel bubble under the carburetor until the fuel bubble is full of fuel.
3. Turn the off switch to the "I" position.
4. Pull the starter rope.
5. When there is a starting response, close the damper and pull the starter rope again.
6. After starting, open the damper.
7. Cycle to accelerate the warm-up machine work.
8. For the first 10 hours of use, the oil mixture ratio should be a little thicker, then follow the normal ratio.

Product Description

Specification
Color: Red, Silver
Material: PP, Aluminum Alloy, Manganese Steel, Nylon
Assembly Required: Yes
Usage: Side-mounted
Displacement: 33cc
Power: 0.81kw
Rotation Speed: 8500r/min
Engine Type: Single-cylinder Air-cooled 2-stroke Gasoline Engine
Carburetor Type: Diaphragm Carburetor
Gasoline Oil Mixing Ratio: 20-25:1
Idling Speed: 2800-3200r/min
Fuel Tank Volume: 1000ml /33.8 Oz
Operating Noise: About 110db
Engine Size: 26*22*27cm/10.24*8.66*10.63in
Product Length: 1.75m/5.74ft
Gross Weight: 8.8kg/19.4 lbs
Package Size: 107*27*27 cm/42.13*10.63*10.63 in

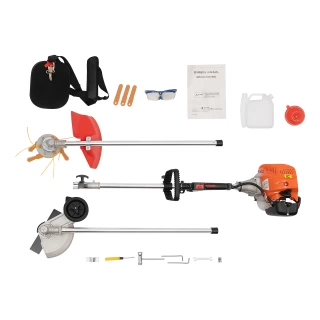

Package Included
1 * Weed Wacker
1 * Oil Pot
1 Pair* Goggles
1 * Funnel
1 * Carrying Strap
1 * English Manual
All Accessories for Installation

Notes

1.The oil mixture ratio should not be wrong or deviated. Please do not use poor-quality motor oil as the matching motor oil.
2.Please check whether the blade tool is firmly installed before starting the engine, and check whether the blade tool is intact after each work. When starting the engine, personnel need to stay away from 32.81ft or more. Please wear gloves(not included) and goggles during use.
3.Please change the engine oil of the new machine every 4 hours of work and every 20 hours of work after 5 times (change the oil when the engine is warm). Please check the oil before each work to see if it is missing and add it to the right position. Fuel needs to be replenished as it is used. Refueling should be kept away from the fire source for more than 49.21ft, and open flame operation such as smoking is prohibited.
4.The sponge filter inside the air filter needs to be cleaned every 50 hours of work (the cleaning cycle should be shortened when the working environment is dusty), and it can be cleaned with detergent, shampooed with water, and dried before re-installing the air filter.
5.Before turning off the engine, it should idle for 1-2 minutes to facilitate the natural heat dissipation of the engine.
6.The blade work head gearbox is filled with grease once every 20 hours of work to provide internal gear lubrication to reduce wear and improve life.
7.The short flexible shaft and hard shaft inside the connecting disk should be withdrawn after each working cycle, greased and maintained, and then reassembled.
8.Please check the engine air inlet, cylinder heat sink, and high-pressure package frequently to remove weeds and dust at the air inlet to ensure smooth air ducts and avoid pulling cylinder damage caused by high engine temperature.
9.If you do not use the machine for more than 10 days, please pour out the oil in the gasoline and engine oil, and press the oil bubble to drain the fuel in the carburetor to avoid damage to the engine caused by oil deterioration.
10.If the machine is not used for a long time, please put the machine in a dry and ventilated place, and empty the fuel. Please avoid the high-pressure cap, spark plug, etc. from being unable to start due to humidity, rust, and inversion.
11.When the old machine is used the next year, please check the spark plug cap for rust and corrosion first to avoid weak power generation, which makes it difficult to start. After starting, it needs to idle for 10 minutes to see if the parts are working properly.
12.Work Check:
Please check daily if the oil is sufficient, visually at the threaded port position, and add appropriately if it is missing.
Please check daily whether the air filter is too dirty. Please use pure gasoline to clean the air filter sponge.
Please check whether the throttle cable is stable in the carburetor position before work.
Please check whether the blade is in good condition before work, and do not use a damaged blade.
Before working, please check whether the grass baffle is in good condition, and replace the cracked and damaged grass baffle.
Please check whether the screws in each part are loose, and check and tighten them one by one with a wrench.
13.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
14.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
